Products

PVKIT® 2.0 / S-5! Clamps

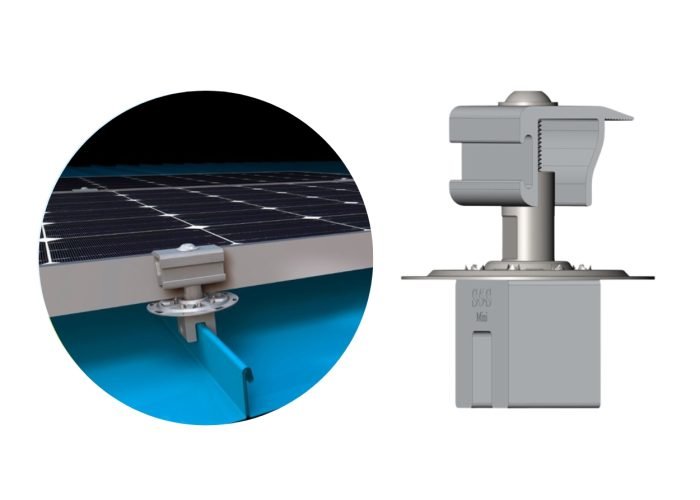

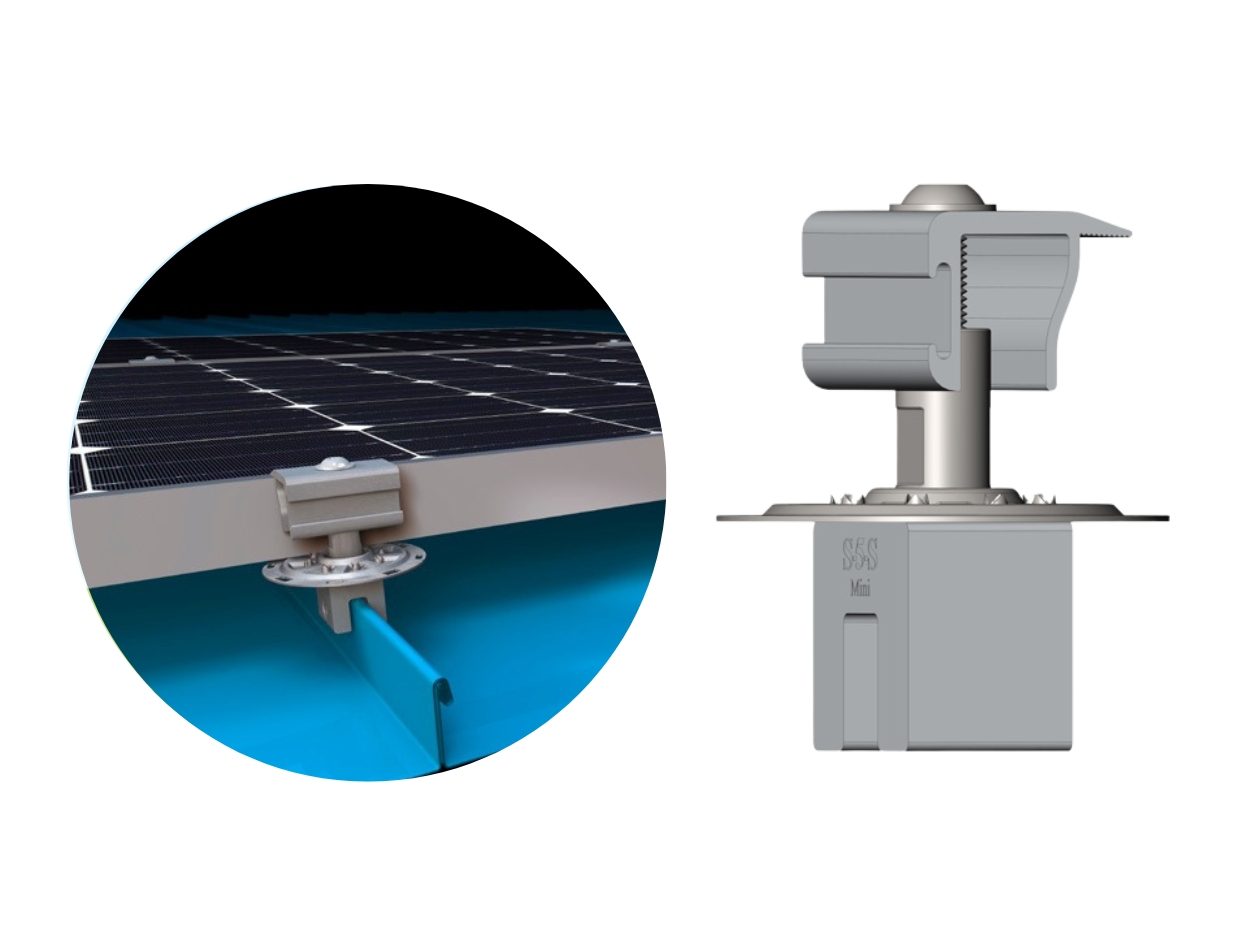

EdgeGrab

• Pre-assembled components – quick and easy
• Versatile: same kit for 30-46 mm module frames
• Only one tool needed for installation
• 80% less weight
• 25% better load distribution
• Installs with module, reducing lay out time
• 100% aluminum & stainless components
• Single-piece EdgeGrab installs with ease
• UL-listed ground path; nothing else needed
• Multiple slots for wire ties
• Low profile hardware for flush, clean finish
• Available in black
• Allows load reduction per ASCE-7
• UL 2703 listed

PVKIT® 2.0 / S-5! Clamps

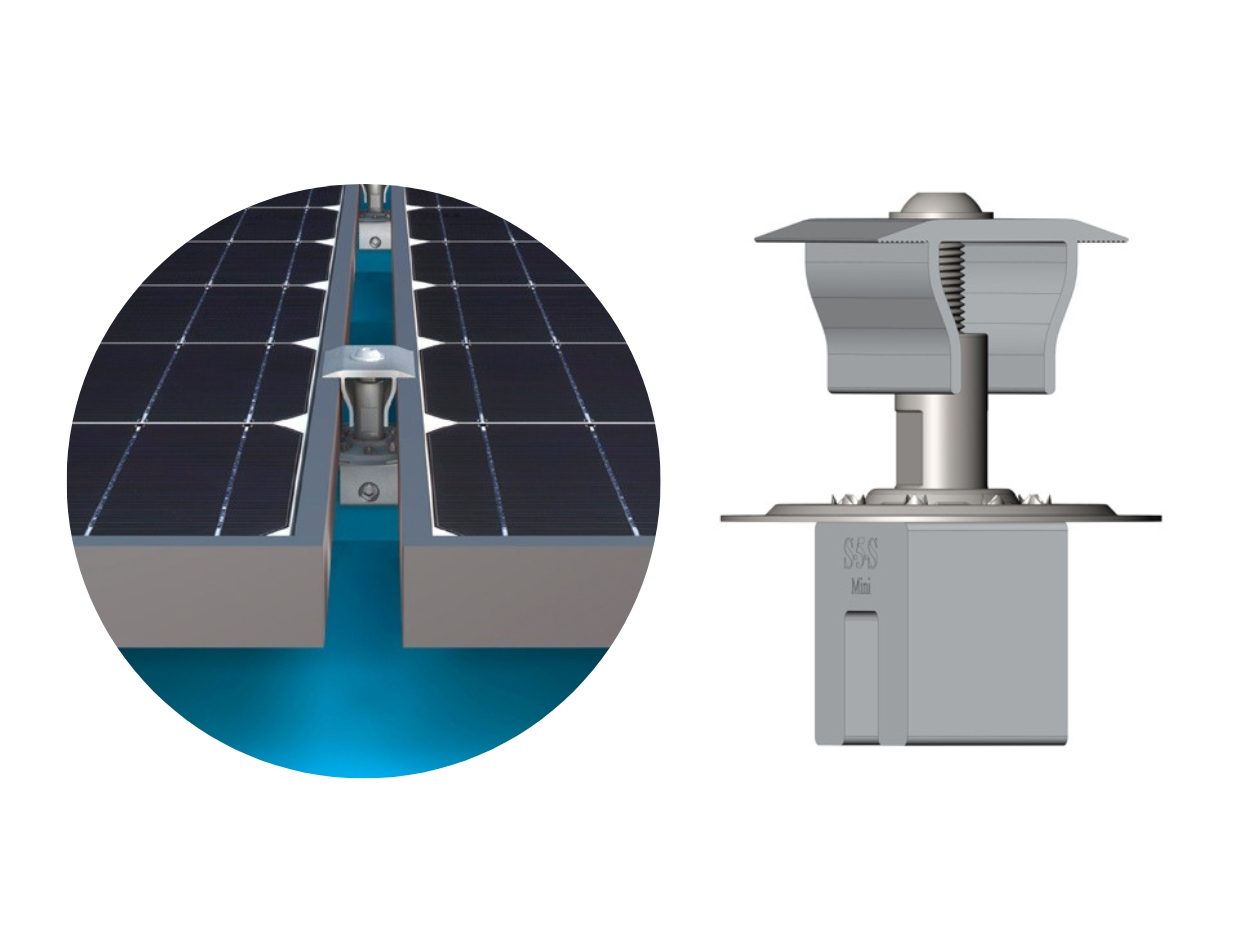

MidGrab

• Pre-assembled components – quick and easy
• Versatile: same kit for 30-46 mm module frames
• Only one tool needed for installation
• 80% less weight
• 25% better load distribution
• Installs with module, reducing lay out time
• 100% aluminum & stainless components
• Single-piece EdgeGrab installs with ease
• UL-listed ground path; nothing else needed
• Multiple slots for wire ties
• Low profile hardware for flush, clean finish
• Available in black
• Allows load reduction per ASCE-7
• UL 2703 listed S-5 Clamps

S-5! Seam Clamps

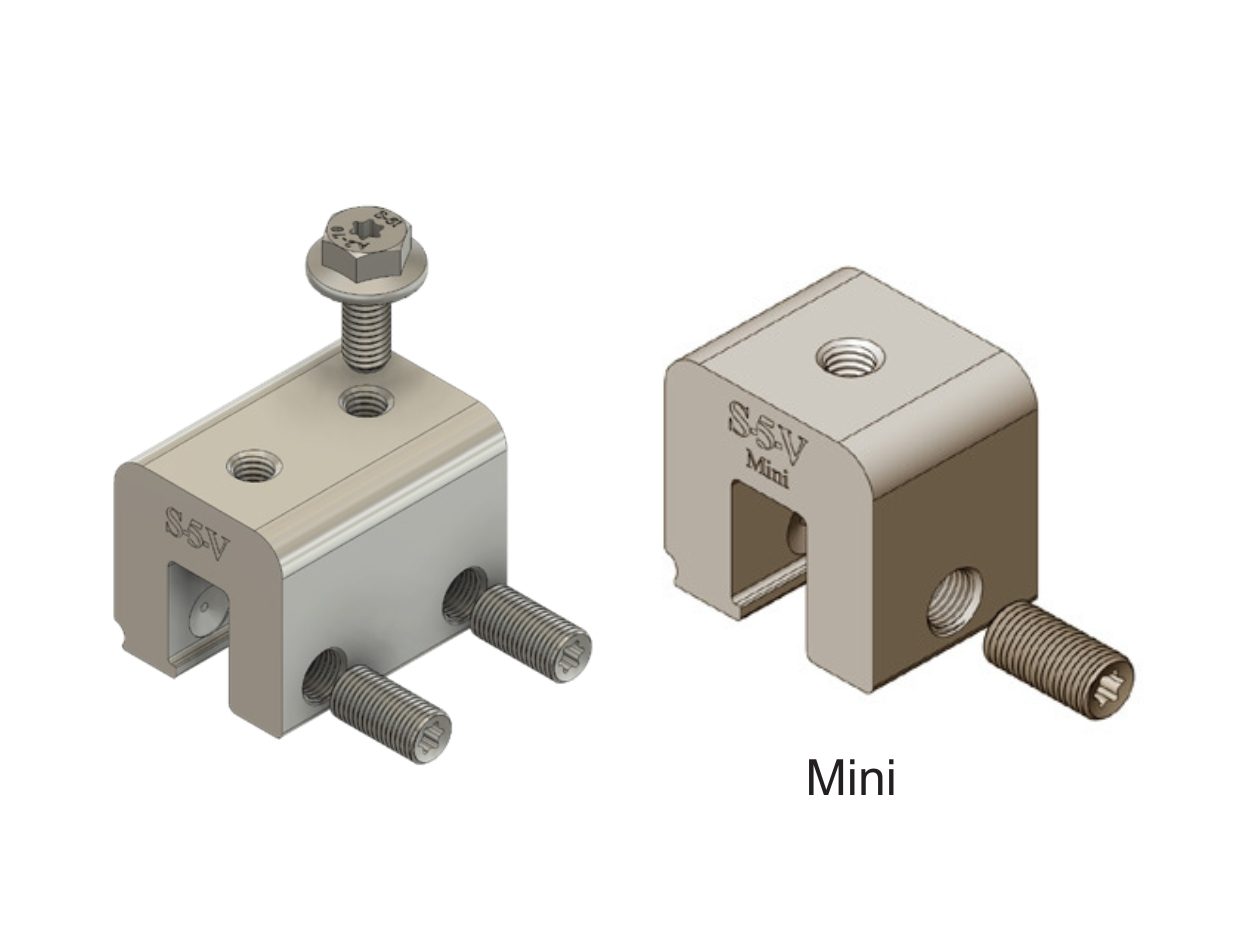

S-5-V™ & Mini

• Fits the same vertically-oriented seams as the S-5-U
• Less versatile but more cost-effective than the S-5-U
• Specifically designed for vertical machine-folded seams
• S-5 Clamps

S-5! Seam Clamps

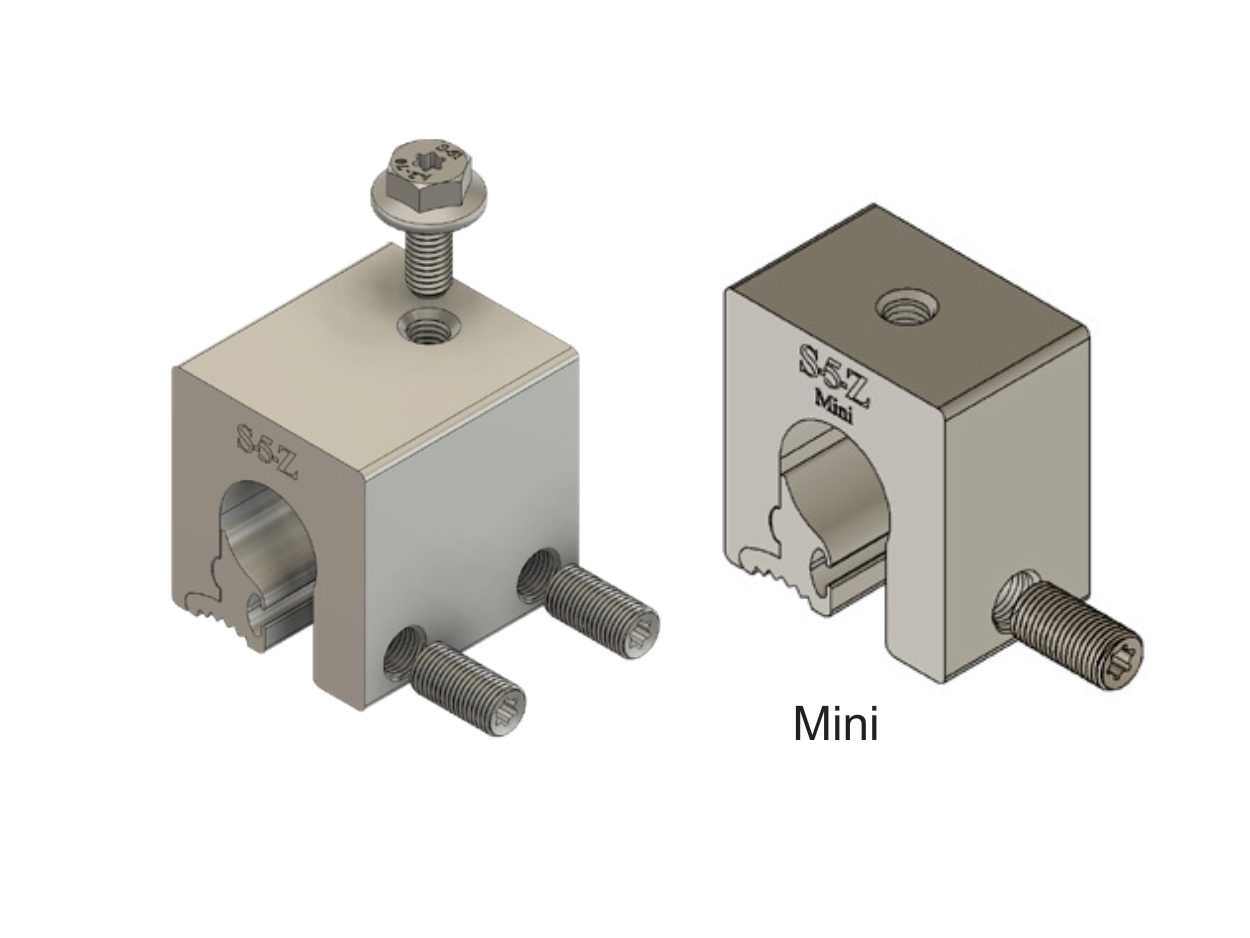

S-5-Z™ & Mini

• Specially designed to fit Zip-Rib®, BEMO, Kalzip® and similar profiles with a round “bulb” seam configuration and seam diameters of ≤ ¾” (19 mm).
• Two-piece clamp design allows for ease of installation anywhere along length of the rib.

S-5! Brackets

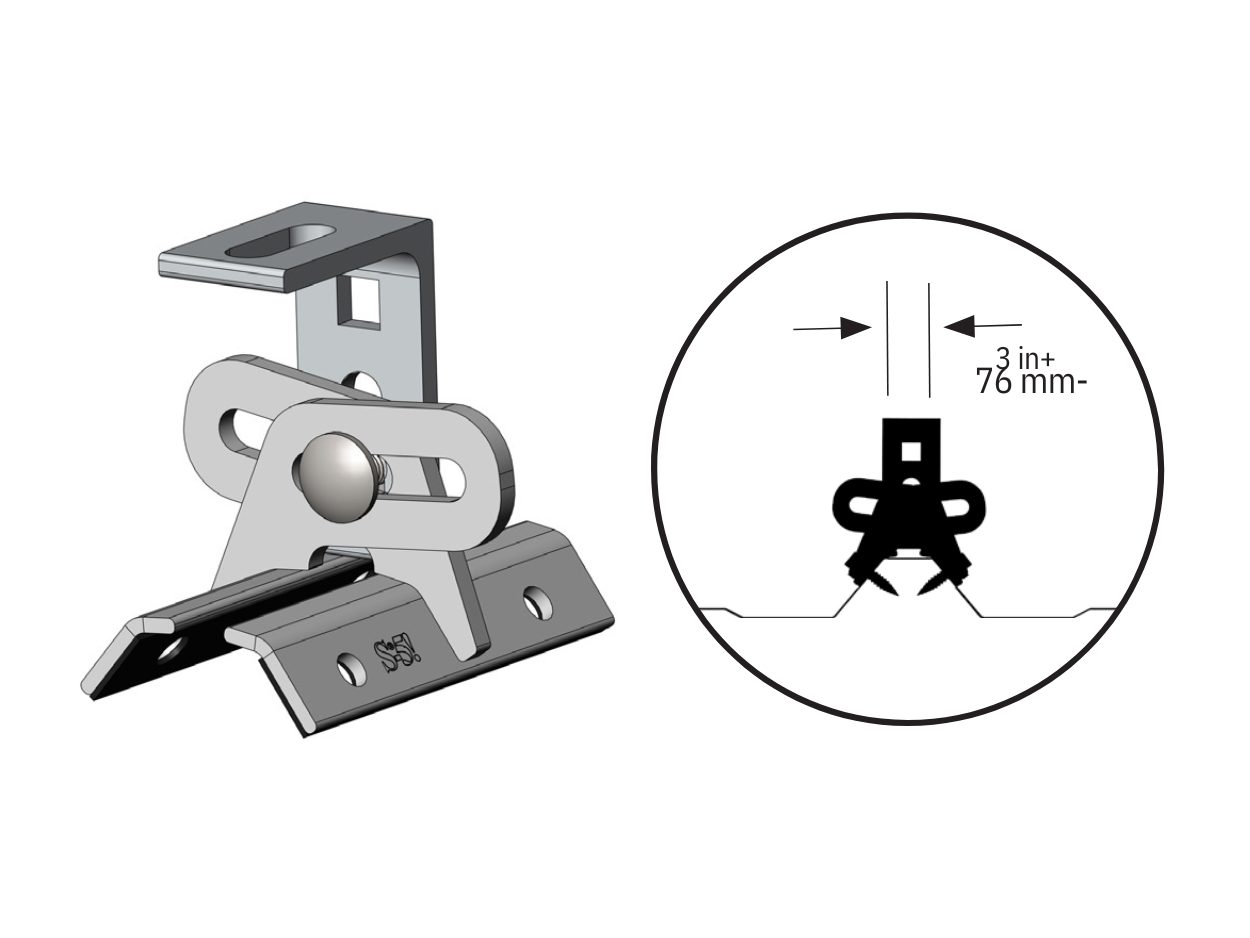

Protea™ Bracket

• L-Foot allows for side-mount rails, bottom-mount rails or PVKIT
• Load-tested for engineered applications
• Adjustable – fits trapezoidal rib profiles up to 3” (76 mm) wide
• Peel-and-stick EPDM surface prevents accidental shifting during installation
• Stainless-capped, self-piercing screws specifically designed to prevent swarf; EPDM sealing washer

S-5! Brackets

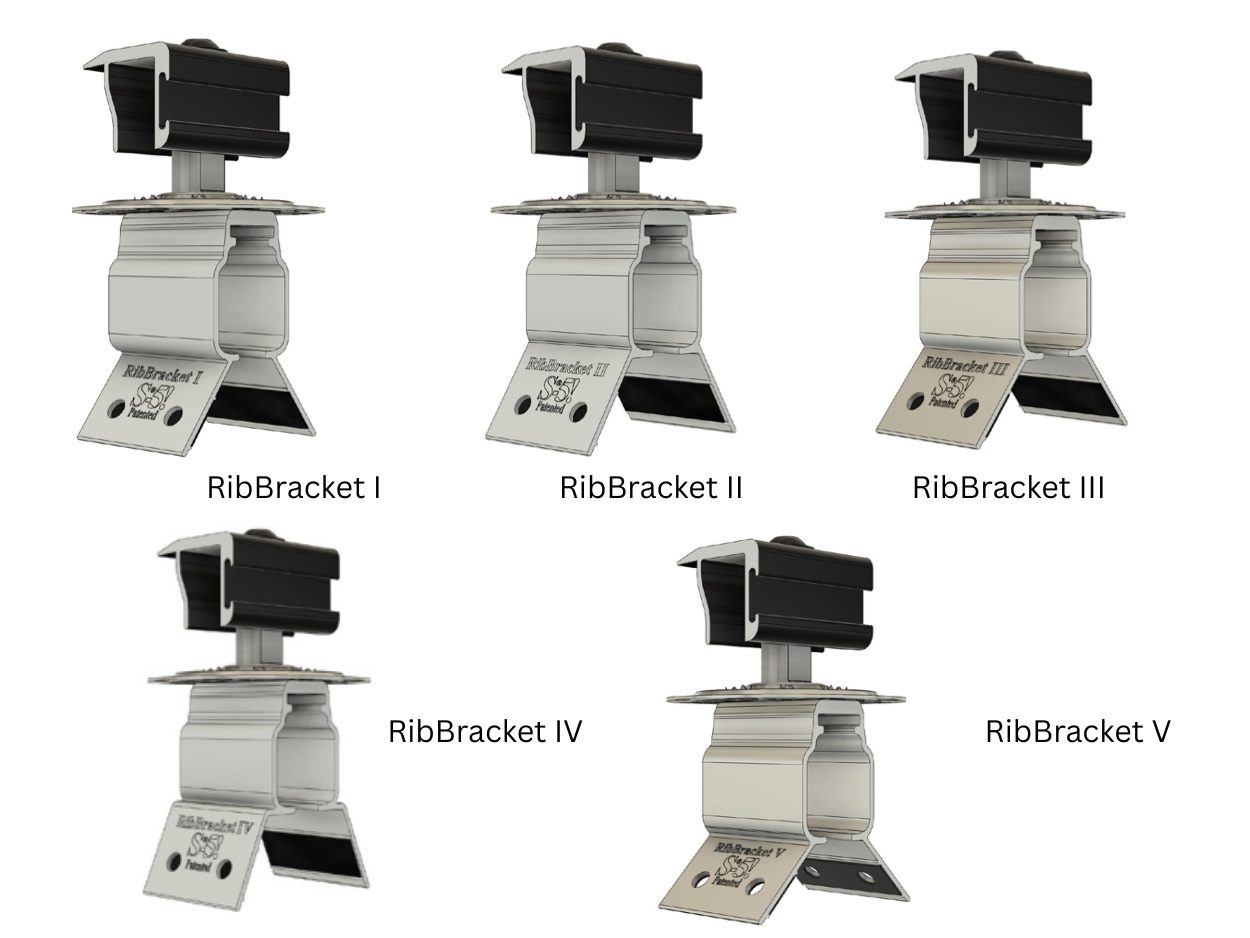

RibBracket™ I-V

• Flex-to-fit legs endure proper fit
• Large channel above rib can be used for wire management
• Sheeting-only attachment can be placed anywhere along roof ribs
• Stainless-capped, self piercing screws specifically designed to maximize holding strength & prevent swarf
• EPDM sealing washer
• Bracket allows for 4” (100 mm) of air space above rib
• 4 self-penetrating screws and 1 M8 Nut Included

RibBracket I

Designed for popular Hawaiian profiles, such as HPM Custom 4-Rib, HPM Custom 6-Rib, and similarly-dimensioned narrow ribs.

RibBracket II

Designed for popular African and Australian profiles, such as Lysaght Trimdek® 1015, Safintra Trimflute 1015, and similarly dimensioned profiles.

RibBracket III

Designed for popular North American and Indian profiles, such as PBR Panel, R-Panel, Kirby Roof (KR), and similarly dimensioned profiles.

RibBracket IV

Designed for popular African and North American profiles, such as Safintra IBR, KingSpan® KS1000, and similarly-dimensioned profiles.

RibBracket V

Designed for Ternium TR and similarly-dimensioned profiles.

S-5! Seam Clamps

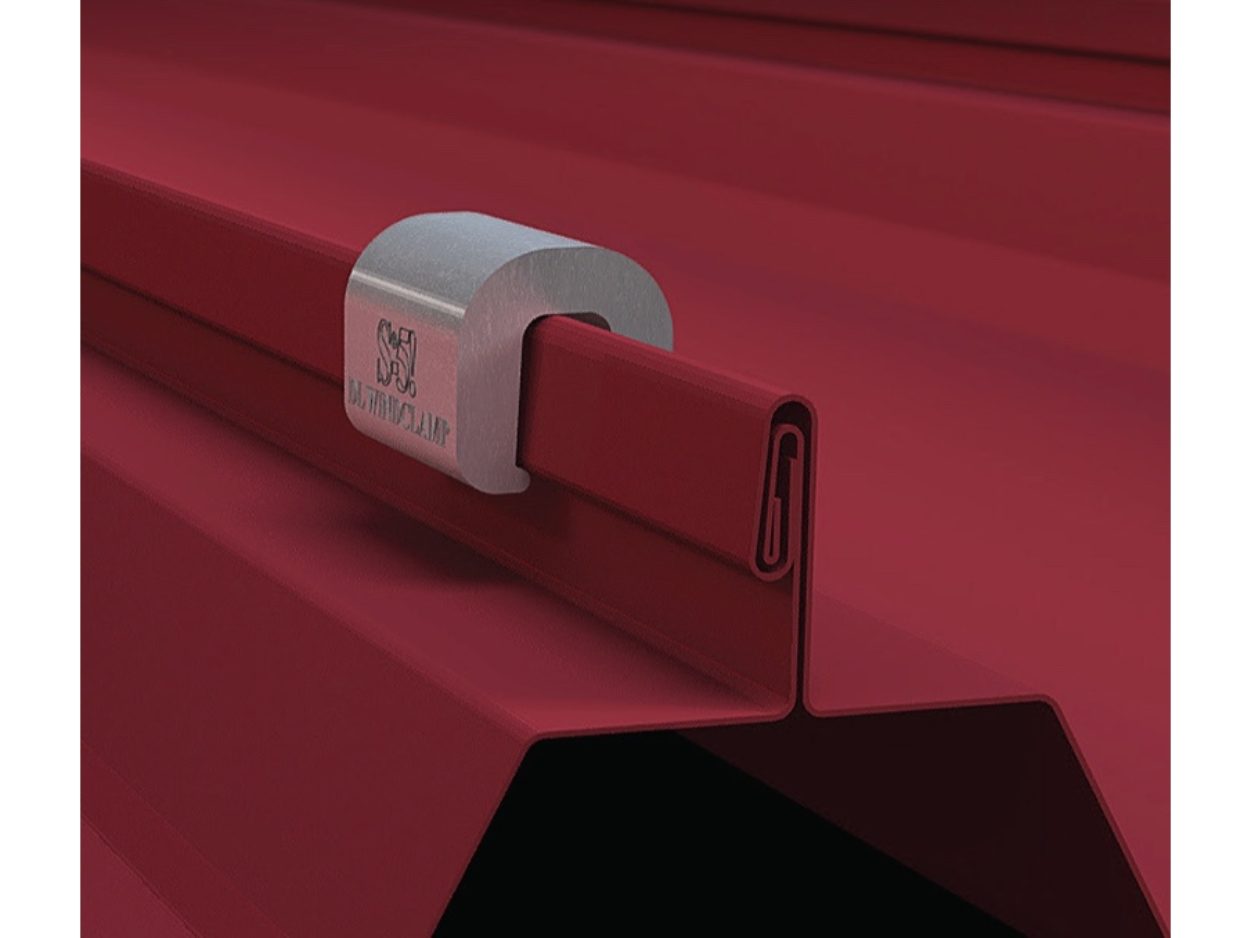

WindClamp

• Proven effective for more than 25 years
• Preserves roof's thermal cycling integrity
• Preserves roof warranties
• Costs only pennies per square foot – More cost-effective than other alternatives
